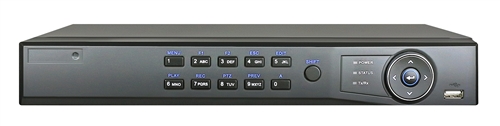

| TVD-04 |
|
4-CH |
|
DV-21 |
| TVD-08 |
|
8-CH |
|
DV-22 |
| TVD-16 |
|
16-CH |
|
DV-23 |
• 4 / 8 / 16 CH. record and playback
• Standard H.264 compression
• Supports HDMI/ VGA output
• Supports 1x SATA HDD
• Supports USB 2.0 devices to backup
• Supports external SATA DVD writer to backup
• Supports saving recorded files with AVI standard format to a remote computer through internet RECORD & PLAYBACK
• Supports recycle after HDD full
• 4 / 8 / 16 CH 720P / 1080P / 960H and IP recording
(IP function: 4CH model supports 1 IP cam; 8CH model supports 4 IP cam; 16CH model supports 8 IP cam)
• 1 audio channel available
• Supports deleting and locking the recorded files one by one
• Supports remote playback in Network Client through LAN or internet ALARM
• Supports schedule for motion detection
• Supports pre-recording and post recording
• Supports 128 PTZ presets and 8 auto cruise tracks
• Supports 1 administrator and 63 users
• Supports TCP/IP, DHCP, PPPoE, DDNS protocol
• Supports IE browser to do remote view
• Supports dual stream (Network stream is adjustable independently to fit the network bandwidth and environment)
• Supports mobile surveillance by phones with iPhone, Android
• Supports NVMS to manage multi devices on internet
• 12V DC
|
|
• 16 CH. record and playback
• Standard H.264 compression
• Supports HDMI/ VGA output
• Supports 2x SATA HDD
• Supports USB 2.0 devices to backup
• Supports external SATA DVD writer to backup
• Supports saving recorded files with AVI standard format to a remote computer through internet RECORD & PLAYBACK
• Supports recycle after HDD full
• 16 CH 720P / 1080P / 960H and IP recording (Supports 8 IP cam)
• 1 audio channel available
• Supports deleting and locking the recorded files one by one
• Supports remote playback in Network Client through LAN or internet ALARM
• Supports schedule for motion detection
• Supports pre-recording and post recording
• Supports 128 PTZ presets and 8 auto cruise tracks
• Supports 1 administrator and 63 users
• Supports TCP/IP, DHCP, PPPoE, DDNS protocol
• Supports IE browser to do remote view
• Supports dual stream (Network stream is adjustable independently to fit the network bandwidth and environment)
• Supports mobile surveillance by phones with iPhone, Android
• Supports NVMS to manage multi devices on internet
• 1U Rackmountable
• 12V DC
|
|

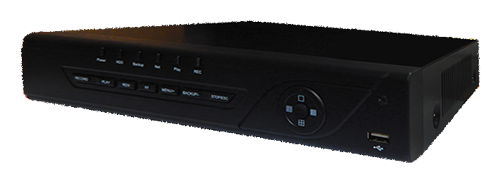

| TVH-04 |
|
4-CH |
|
DV-26 |
| TVH-08 |
|
8-CH |
|
DV-27 |

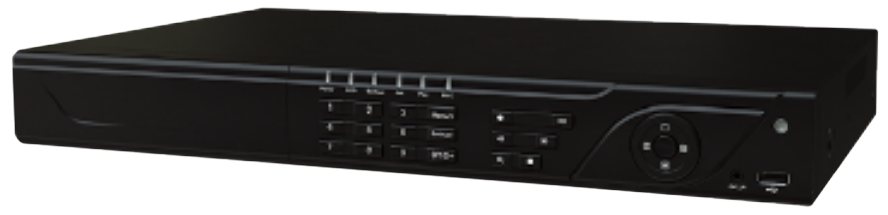

| TVH-16 |
|
16-CH |
|
DV-28 |
• 4/8/16CH TVI/ AHD 2.0 video input
• 4/8 CH 1080P / 1080P lite / 720 recording
• 4CH supports 1CH IPC 1080P / 960P / 720P recording; 8CH supports 1CH IPC 3MP / 1080 / 960P / 720P recording
16CH support 4CH IPC 3MP / 1080 / 960P / 720P recording
• Adopt standar H.264 high profile compression format to get high quality video at much lower bit rate
• Intuitive and user friendly Graphics User Interface (GUI), window style operation by mouse
• Multi-mode recording: manual/timer/motion/sensor
• Playback:4/8/16 CH simultaneously playback
• Search: Time/caldendar, events (alarm,motion)
• Pentaplex: preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported Remote control via IE or CMS:
preview, playback, backup, PTZ and configuration
• Dual stream technology to encode recording stream and network stream respectively;
network stream can be adjusted to fit bandwidth without changing recording quality
• Multi-user online simultaneously
• Authorization management, log review and device status review
• HDMI 1080P output, true high resolution display
• Supports PTZ preset and auto cruise, up to 128 presets and 8 cruises
• Powerful smart phone surveillance supporting iPhone, Android
• Supports NAT funtion, support QR code scanning by mobile phone
• Completes SDK software available, easy to integrate with other applications
|
