True D&N License Plate Capture Camera
SHM-7540LPDNP
 |
|
Mechanical IR Cut Filter (ICR) |
|
- 1/3ˇ¨ Sony Super HAD II CCD
- Sony HQ-1 DSP
- 540 TV Lines
- 0.08 Lux @ F1.0
- Mechanical IR Cut Filter (ICR)
- Built-in Auto Sense-up
- High Gain/Low Noise Amplifier - DNR

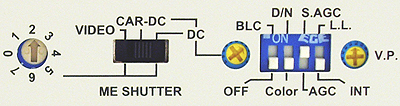

- Advanced 8-step Manual Shutter
- CAR-DC Iris Control is available to achieve
reliable license plate capture for road
surveillance when car speed is up to
150km/hr in the daytime and 70km/hr
at night time. - Dual Power 12V DC / 24V AC
| Model | SHM-7540LPDN |
SHM-7540LPDNP |
| TV System | NTSC |
PAL |
| Image Sensor | 1/3ˇ¨ Sony Super HAD II CCD |
|
| DSP | Sony HQ-1 |
|
| Total Pixels | 811(H) x 508(V) |
795(H) x 596(V) |
| Video Output | 1.0Vp-p Composite / 75ohms |
|
| Resolution | 540 TV Lines |
|
| Minimum Illumination | 0.08 Lux @ F1.0 Color mode automatically switches to B/W mode under 2 Lux |
|
| Infrared Sensitivity | 700~1100nm |
|
| Electronic Shutter Speed |
AES ON, AES OFF, 1/100(120)sec, FL:1/130sec,1/160sec,1/210sec, 1/280sec, 1/360sec, 1/420sec, 1/560sec |
|
| Back Light Compensation | ON/OFF Switchable |
|
| Auto Gain Control | ON/OFF Switchable |
|
| Day & Night Switching | Mechanical IR Cut Filter (ICR) Auto Switching Color/Monochrome |
|
| Scan System | 2:1 Interlace |
|
| Synchronization | Internal/Line Lock (AC Version Only) |
|
| S/N Ratio | More than 50dB (S.AGC OFF) |
|
| Auto Iris Control | Video / DC Switchable |
|
| Auto White Balance | AWB |
|
| Lens Mount | CS/C (with adaptor) |
|
| Power Supply | 12V DC / 24V AC |
|
| Power Consumption | 3.0W |
|
| Operation Temperature | 14˘XF ~ 122˘XF / -10˘XC ~ 50˘XC |
|
| Storage Humidity | RH 80% or less |
|
| Storage Temperature | -4˘XF ~ 140˘XF / -20˘XC ~ 60˘XC |
|
| Dimension | 4.72ˇ¨(L) x 2.36ˇ¨(W) x 1.97ˇ¨(H) / 120mm(L) x 60mm(W) x 50mm(H) |
|
| Weight | 0.88 lbs / 400g |
|
* Specifications are subject to change without notice
 |
 |
